prefabricated directly buried insulated pipe

pre insulated steel pipe with anti-corrosion hdpe pipe coating for crude oil industry

Basic introduction

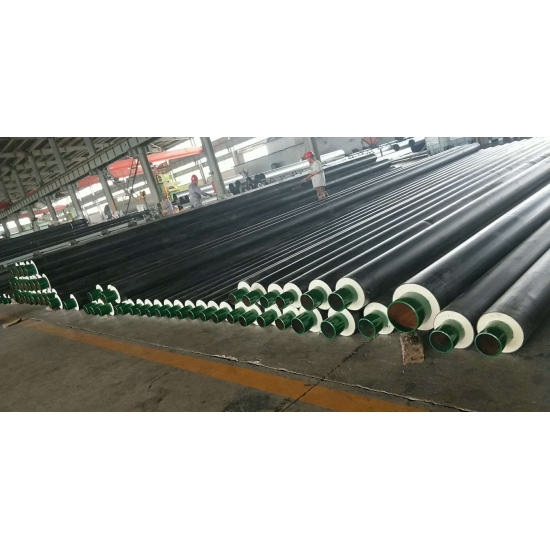

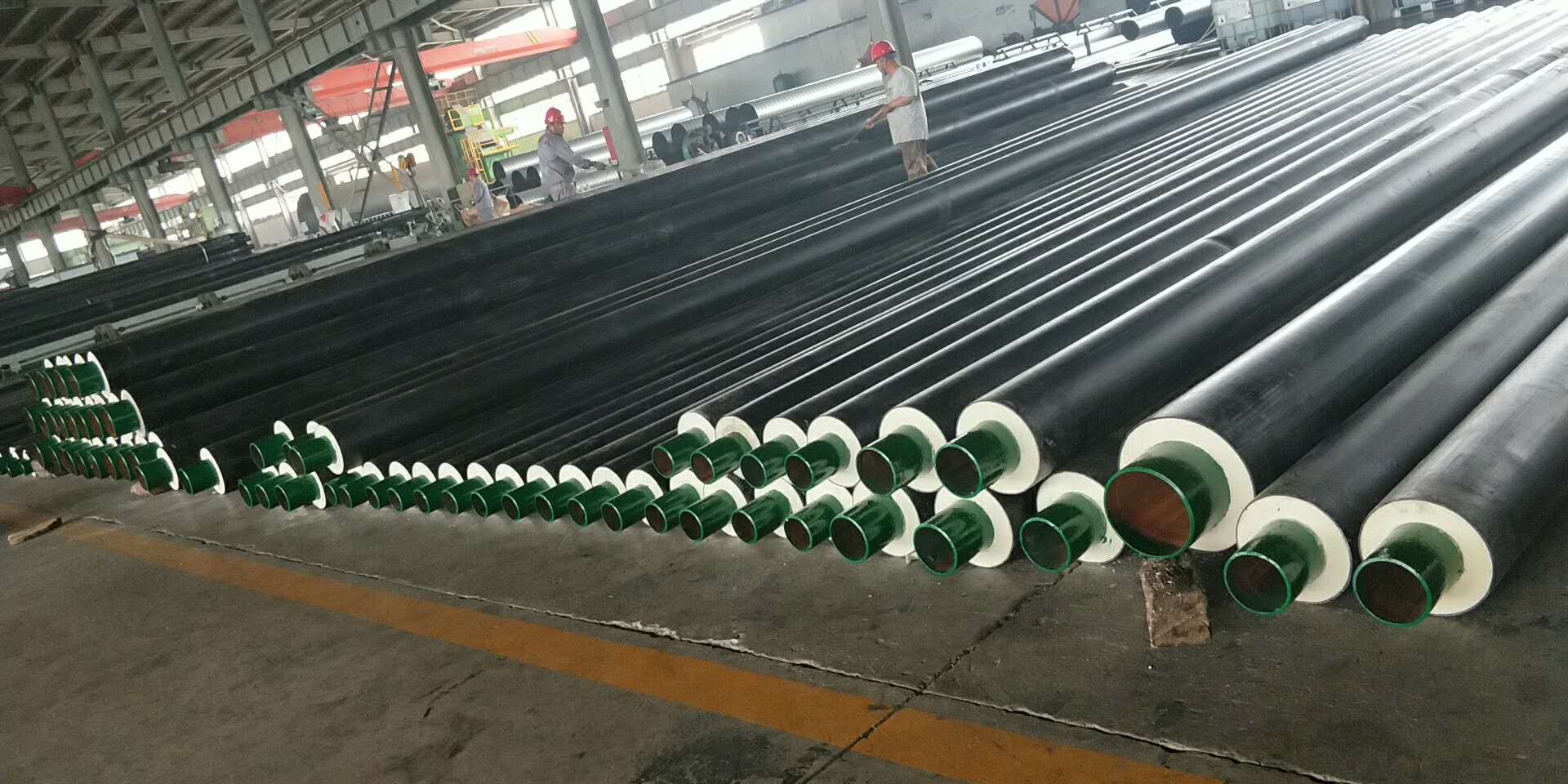

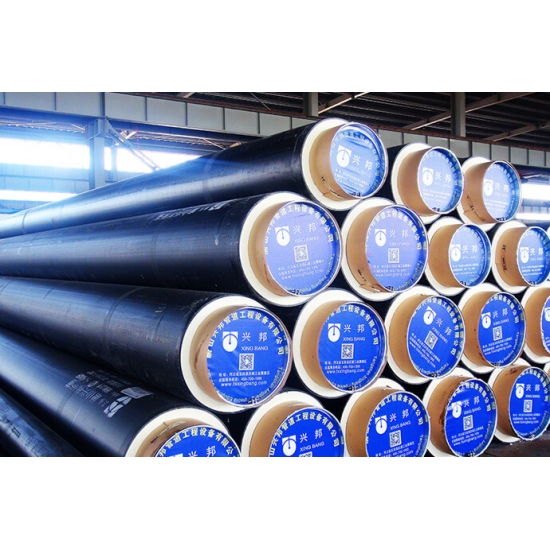

The pre insulated pipe is a kind of heat resistant pipe used for district heating and cooling by transport hot water and chilled water.

The carrier pipe is 20#seamless steel pipe with DN≤150 and Q235B spiral welded carbon steel pipe with DN≥200

steel standard:API, ASTM, DIN, GB or any other standard as customer's request.

The thermal insulating material of the pre insulated pipe is high density cfc-free polyurethane foam

density ≥60kg/m3

thermal conductivity ≤0.033W/mk

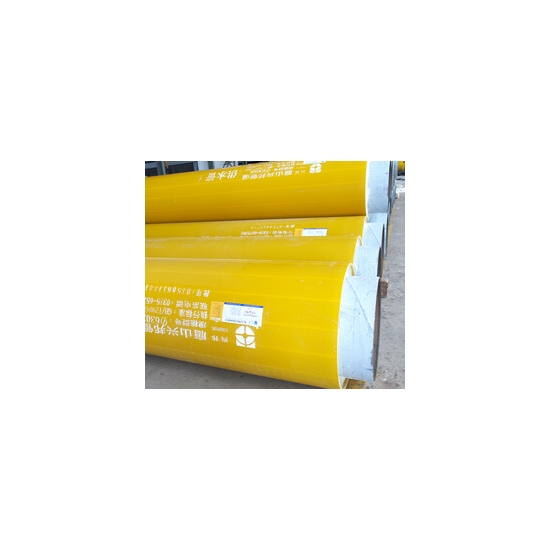

The outer jacket of the pre insulated pipe is hdpe pipe or galvanized steel jacket.

PE material:PE100

PE density ≥940kg/m3

surface treatment:corona(to improve the adhesive with the polyurethane foam layer)

Appplication range:

Product application：Heat supply, cooling supply, anti-corrosive in the field of crude oil transportation, thermal insulation pipeline engineering.

Medium temperature：≤120℃（Accidental peak＜140℃）。

Medium pressure：≤2.5MPa。

Laying mode：It is mainly used for direct-buried laying, and can also be used for ditch or overhead laying pipeline.

Product range：DN20mm～DN1600mm

Product advantages：

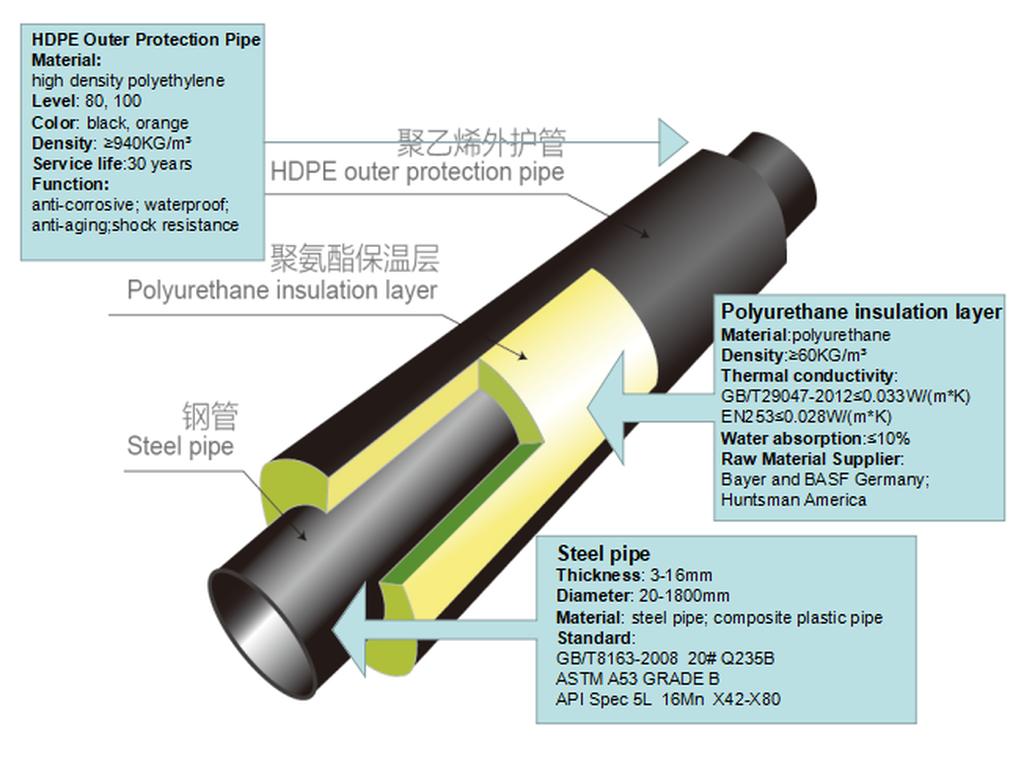

1、Unique trinity structure.

2、The quality of the products is in accordance with the national standard and the European standard.

3、the thermal conductivity is low, the heat-insulating property is good, the heat loss is small, the energy-saving and environment-friendly.

4、The unique production process has strong water-proof and anti-corrosive capability, can be directly buried in the underground or water, has short construction period and low comprehensive cost.

5、It has good corrosion resistance and impact resistance at low temperature, and can be directly buried in frozen soil layer.

6、The long-term service life can reach more than 30 years at 140 ℃.

FAQ:

1: Are you a manufacturer or a trading company?

We are a manufacturer which has  more than   2 0 years' history.

2: Where is your manufacturer? How to visit it?

Our factory located in Yutian industry Zone,TangShan City, Hebei Province, China. A bout 1.5 hours drive time to Beijing and TianJin airport.

You can take a plane to Beijing or Tianjin. Then we could pick up you at the airport .

3: How do we control our products' quality?

We have professional quality control workers and quality inspection center(CNAS lab)  to control the entire production quality.

4: How do you transport these products?

We use straps to hoist pre-insulated pipes, it can avoid no damage to our products, no hooks for lifting pipe directly. During the handling process, collision, tossing and more ground drag scrolling are strictly forbidden.

In the process of long distance transport, the pipes should be fixed, and not damage outer protecting pipe sand insulating layers.

20 Container is ok with 5.8 meters length.

40 Container is ok with 11.8 meters length.

5: Can I customize some other sizes of products?

Yes! We can according to the customer's request.
If you have any other questions, please don't hesitate, contact us.

6:Can we get a sample? how to pay?

Small size,the sample is free,and you just pay for the freight.

large-sized or customed, it is necessary to pay the sample fee and the freight.
