●Production Scope：DN100mm～DN1000mm
●Usage Area： transport for high temperature steam or other high temperature medium
Payment :
according to agreementoriginal region :
ChinaLead Time :
10-15days after receiving deposit

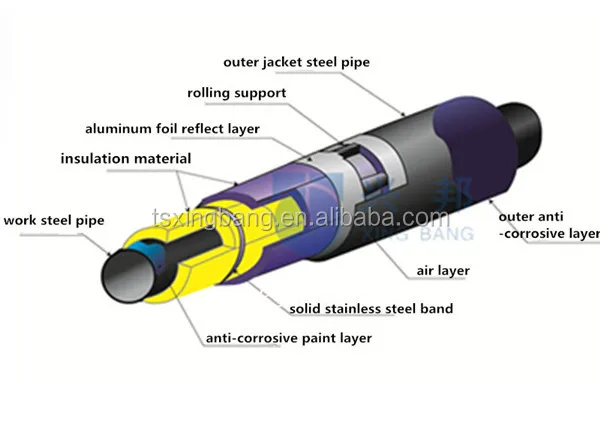

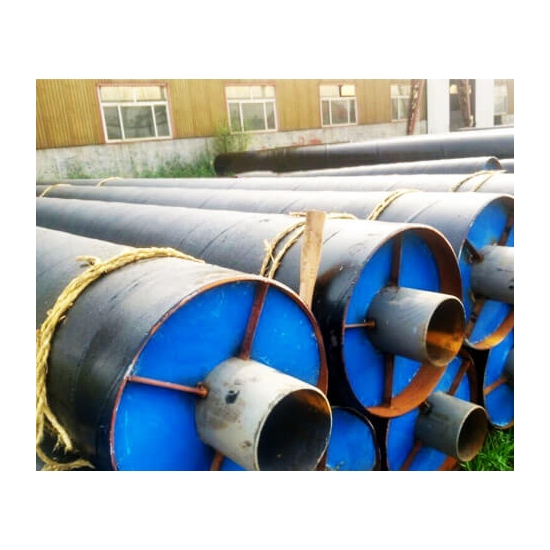

Structure of External sliding steel jecket steam insulation
Application range
Medium: hot water、steam、hot oil、hot material and so on.
Medium temperature:less than 350℃
Medium pressure:Hot water, steam medium not exceeding 2.5MPa. Other media are determined according to the special requirements of the medium.
Laying method:Mainly used for direct buried, and can be used in trenches and overhead.
Directly buried environment:The underground water level is lower, and the buried depth of the pipeline is above the water level line.
Cold environment: the recommended depth is below the frozen soil layer
Special requirements: the outer surface of the outer protection pipe is recommended to take the sun protection measures when the overhead is laid.
Main Technical Parameter of High Temperature Resistant Glass Wool
| Item | Unit | Index |
| Density | kg/m3 | ≥48 |
| Average diameter of fiber | mm | ≤8 |
| Shot content | % | ≥ 0.3 |
| Water content | % | <1 |
| Moisture rate | % | ≤2 |
| Thermal conductivity | W/M.k | ≥ 0.043 |
| Max working temperature | ℃ | 454 |
Advantage of the Steel Jacket Steam Insulation Pipe
| 1. |
thermostability (high temperature resistant),high pressure resistant |
| 2. |
low heat loss, heat insulation is better |
| 3. | strong anti-corrosive |
| 4. |
long life ,about 30-50 years. |
| 5. |
Be directly buried in the ground |

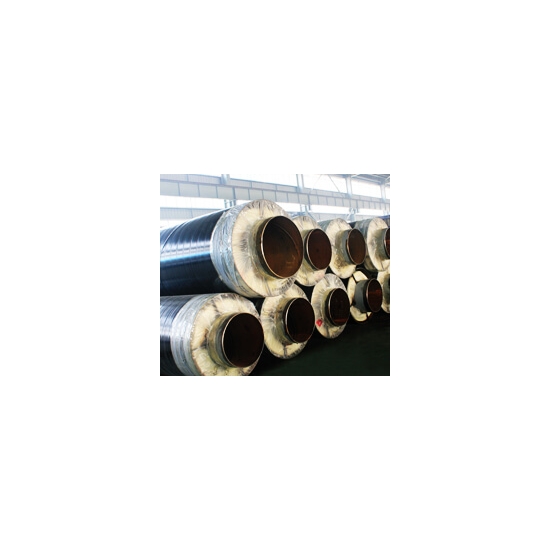

Specification of Steel Jacket Steam Insulation Pipe
| Specifiation(mm) | Work steel pipe (mm) | Outer protection pipe(mm) | Thickness of insulation layer(mm) | ||
| diameter | thickness | diameter | thickness | ||
| 57/219 | 57 | 3.5 | 219 | 6.0 | 60 |
| 76/273 | 76 | 4.0 | 273 | 6.0 | 65 |
| 89/273 | 89 | 4.5 | 273 | 6.0 | 70 |
| 108/325 | 108 | 4.5 | 325 | 7.0 | 70 |
| 133/377 | 133 | 4.5 | 377 | 7.0 | 80 |
| 159/377 | 159 | 6.0 | 377 | 7.0 | 85 |
| 219/478 | 219 | 6.0 | 478 | 7.0 | 100 |
| 273/529 | 273 | 6.0 | 529 | 7.0 | 105 |
| 325/630 | 325 | 7.0 | 630 | 8.0 | 125 |
| 377/720 | 377 | 7.0 | 720 | 10.0 | 140 |
| 426/820 | 426 | 7.0 | 820 | 10.0 | 140 |
| 478/820 | 478 | 7.0 | 820 | 10.0 | 140 |
| 529/920 | 529 | 7.0 | 920 | 10.0 | 165 |
| 630/1020 | 630 | 8.0 | 1020 | 10.0 | 165 |
| 720/1220 | 720 | 10.0 | 1220 | 12.0 | 170 |
| 820/1220 | 820 | 10.0 | 1220 | 12.0 | 170 |
| 920/1320 | 920 | 10.0 | 1320 | 14.0 | 170 |
| 1020/1420 | 1020 | 10.0 | 1420 | 14.0 |
170 |

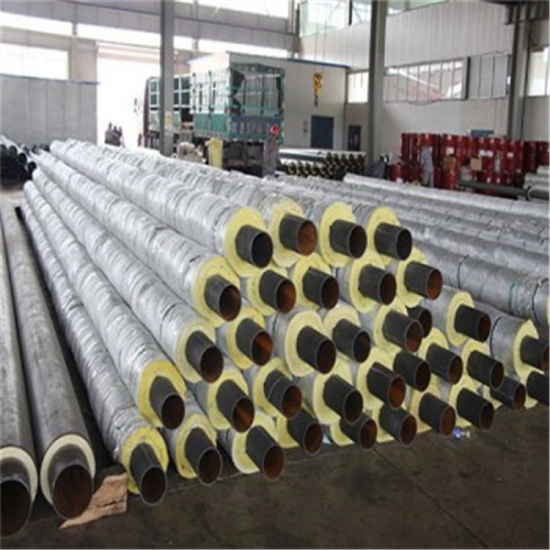

Overhead steel sleeve steel steam insulation pipe:
1.The working steel pipe adopt spiral welded pipe or seamless steel pipe, and the specific requirements shall be carried out in accordance with the design document.
2.The outer surface of the working steel pipe is wound with aluminum silicate felt, which is used to reduce the friction between the working steel pipe and the hard insulation layer.
3.The outer layer of aluminum silicate felt is composite calcium silicate tile, which is used for the first layer of pipeline insulation. The insulation material has advantages of high temperature resistance, good heat preservation effect and long service life.
4.The outer surface of calcium silicate tile is wound with an aluminum foil reflector to resist thermal radiation and effectively reduce the interface temperature of polyurethane insulation layer.
5.The polyurethane insulation layer is made of high quality polyurethane raw materials to ensure that the thermal conductivity is not more than 0.033 W / m. K, the temperature resistance of the insulation layer is not less than 140 centigrade degrees Celsius, and the service life is more than 30 years.
6.The outer protective layer with galvanized iron coating is made by factory, and its forming process is cold coil spiral bite, which ensures the strength and sealing of the outer protective layer.
Company profile
Tangshan Xingbang Pipeline Engineering equipment Co., Ltd. was founded in January 1995, is a comprehensive high-tech enterprise. The company is located in Yutian Economic Development Zone, Tangshan City, Hebei Province, covering a total area of 230000 square meters, registered capital of 188 million yuan, annual production capacity of more than 23000 kilometers.
The company has independent intellectual property rights in the field of thermal pipeline technology, and has made its own contribution to the development and promotion of directly buried insulation pipeline technology. Xingbang Pipeline has so far participated in 18 national standards and industry standards, has 4 national invention patents, 49 utility model patents, 6 computer software copyright, 1 scientific and technological achievements in Hebei Province, and enjoys a certain reputation in the industry.
FAQ:
1: Are you a manufacturer or a trading company?
We are a manufacturer which has more than 2 0 years' history.
2: Where is your manufacturer? How to visit it?
Our factory located in Yutian industry Zone,TangShan City, Hebei Province, China. A bout 1.5 hours drive time to Beijing and TianJin airport.
You can take a plane to Beijing or Tianjin. Then we could pick up you at the airport .
3: How do we control our products' quality?
We have professional quality control workers and quality inspection center(CNAS lab) to control the entire production quality.
4: How do you transport these products?
We use straps to hoist pre-insulated pipes, it can avoid no damage to our products, no hooks for lifting pipe directly. During the handling process, collision, tossing and more ground drag scrolling are strictly forbidden.
In the process of long distance transport, the pipes should be fixed, and not damage outer protecting pipe sand insulating layers.
20 Container is ok with 5.8 meters length.
40 Container is ok with 11.8 meters length.
5: Can I customize some other sizes of products?
Yes! We can according to the customer's request.
If you have any other questions, please don't hesitate, contact us.
6:Can we get a sample? how to pay?
Small size,the sample is free,and you just pay for the freight.
large-sized or customed, it is necessary to pay the sample fee and the freight.
contact with us :
